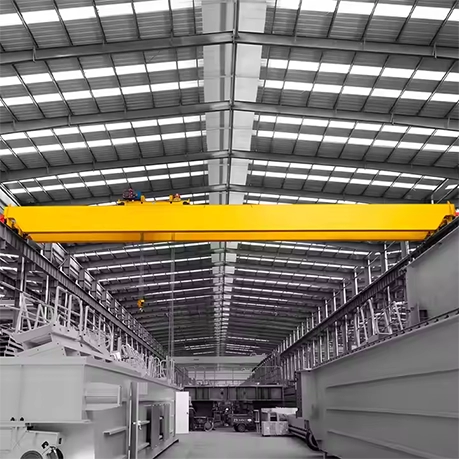

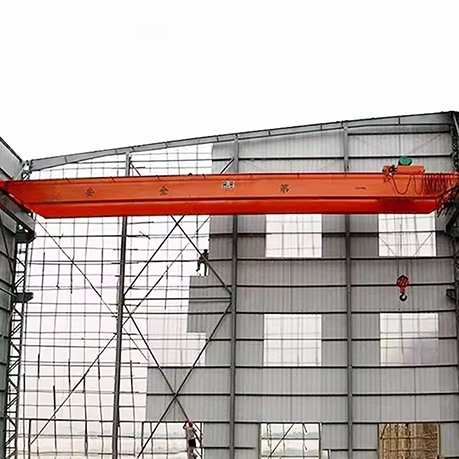

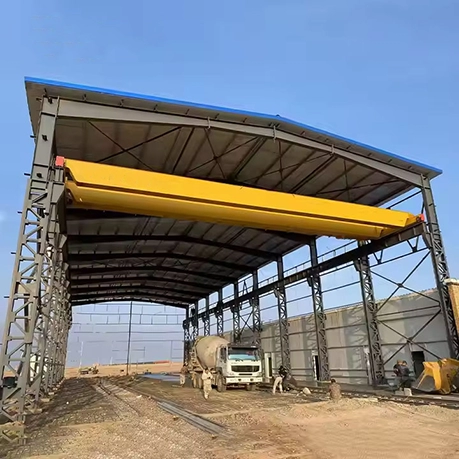

Engineered for industrial efficiency, the LH double-girder electric hoist crane integrates robust structural design with advanced operational control. Its core framework features a high-strength, box-type double girder, constructed from Q235B or Q345B steel, ensuring minimal deflection under load while complying with DIN/FEM standards. The crane’s trolley moves seamlessly along hardened 16Mn steel rails, driven by either LD or QD systems, with optional VVF/VFD controls for smooth speed adjustment.
A key innovation lies in the articulated crab unit, which maintains consistent four-wheel contact with the runway track for balanced weight distribution and reduced wear. Powered by dual direct-drive cross travel motors, the crab accommodates medium to high load capacities ranging from 3 to 32 tons. The hoisting mechanism employs a fixed electric wire rope hoist, equipped with CD/MD drives and dual lifting speeds in a precise 1:10 ratio, enabling both delicate and heavy lifts.
Operators can control the crane via three flexible options: ground pendant, wireless remote, or an open/closed cab. Each mode ensures safe and responsive handling, supported by precision upper and lower limit switches, mechanical braking, and heavy-duty rope guides. All gear drives are lifetime-lubricated, minimizing maintenance needs.
Safety is reinforced through multiple layers of protection, including overload warning systems, voltage loss protection, phase sequence monitoring, emergency stop functionality, and safety latches on hooks. The structural components are joined with high-strength bolts and finished with a durable 120μm epoxy zinc-rich coating, enhancing longevity and corrosion resistance.
Built to global standards such as GB/T10183 and JB/T4315, this crane delivers reliable performance in demanding environments while offering energy efficiency, ease of maintenance, and full component interchangeability.
Our double girder overhead crane systems deliver versatile material handling solutions across multiple industrial sectors. With their compact structural design, reduced overall height, and lightweight construction, these cranes provide optimal performance in diverse operational environments where space utilization and lifting precision are critical.
Manufacturing & Workshop Applications
In industrial manufacturing plants and machinery workshops, these cranes facilitate the seamless movement of raw materials, work-in-progress components, and finished products. Their dual-girder configuration ensures stable transport of medium-weight loads between production stations, assembly lines, and quality control areas, significantly enhancing workflow continuity.
Warehousing & Logistics Operations
Distribution centers and storage facilities benefit from the crane's ability to maximize vertical space utilization. The system efficiently handles palletized goods, machinery parts, and industrial materials within warehouse aisles and storage racks, enabling optimized inventory management and streamlined loading/unloading processes.
Metallurgical & Steel Processing
Within metallurgical plants and metal fabrication workshops, these cranes support auxiliary operations including material transfer, equipment maintenance, and processing line support. Their robust construction withstands industrial environments while handling steel components, production tools, and processing materials with precision.
Power Generation & Utility Facilities
Power stations and energy plants utilize these cranes for equipment maintenance, component replacement, and routine operational tasks. The system's reliable performance ensures safe handling of generators, transformers, and other critical power infrastructure components.
Additional Industrial Applications
Railway Maintenance Depots: For handling locomotive parts and maintenance equipment
Mining Operations: Supporting equipment maintenance and material transfer in mineral processing areas
Aviation Hangars: Facilitating aircraft component handling and maintenance operations
Automotive Manufacturing: Enabling efficient movement of vehicle components and assembly systems
The crane's adaptable control systems—including pendant, remote, and cabin operations—provide flexibility for various operational requirements, while its compliance with international safety standards ensures reliable performance across all application scenarios. By integrating these cranes into your operations, you achieve enhanced material flow, reduced manual handling risks, and improved overall productivity in medium-duty lifting environments.
