Introduction of Beam lancher

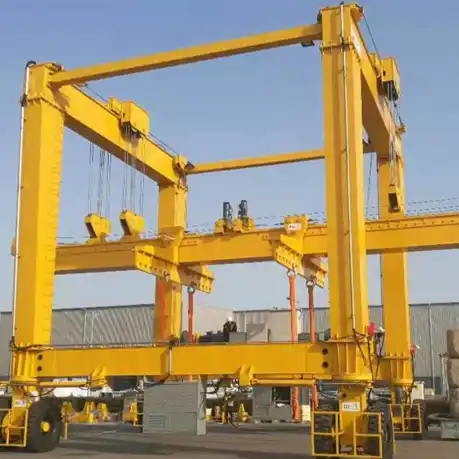

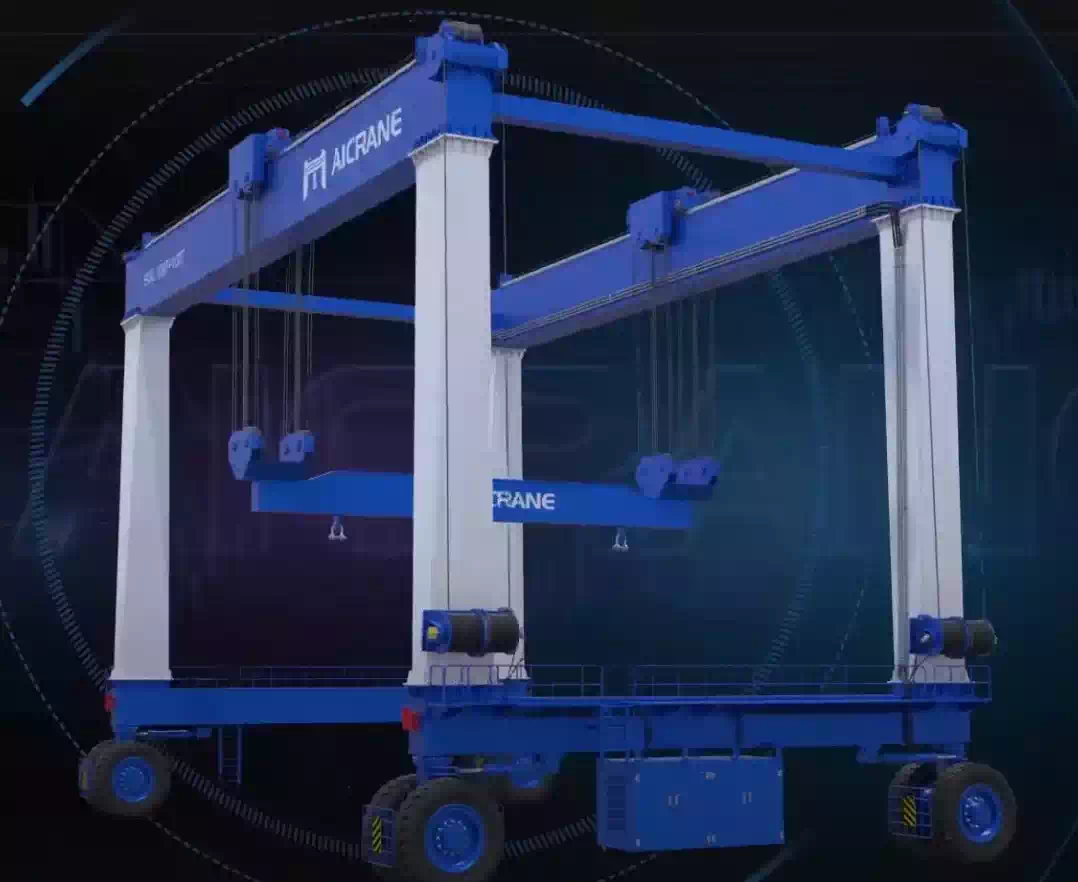

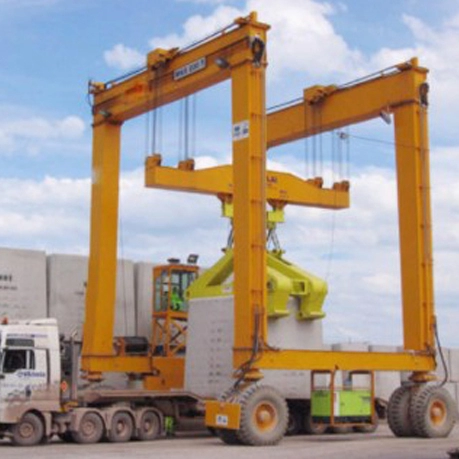

The Beam Launcher Tire Gantry Crane is a specialized lifting system engineered for the precise installation of precast concrete beams and similar heavy structural components in demanding construction environments. Its design emphasizes mobility, stability, and operational flexibility under challenging site conditions.
Features of Beam lancher
Core Engineering & Operational Advantages:
Heavy-Duty Box-Type Construction:
The primary main girder, outriggers, and overall machine frame utilize a high-strength box-type design. This configuration delivers superior structural integrity and load-bearing capacity while minimizing weight. The result is significantly reduced wheel pressure on the ground, enhancing stability and enabling operation on various unprepared terrains.Precision Trolley Movement System:

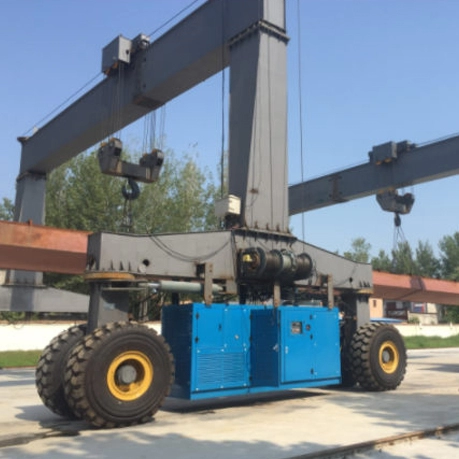

A four-axle, two longitudinal-line tire dolly equipped with hydraulic suspension forms the trolley travel mechanism. This advanced setup ensures even load distribution and smooth, controlled transit of heavy loads across the crane’s span.Fully Hydraulic Drive with Intelligent Control:
Powered entirely by a hydraulic drive system with electro-hydraulic controls, the crane offers responsive and accurate handling. Operators benefit from seamless manipulation of lifting, traversing, and steering functions, contributing to both safety and efficiency.Independent Onboard Power Systems:
Dedicated power supply units for both the trolley and the main gantry ensure continuous and autonomous operation. This self-contained power setup allows the crane to function reliably in remote or undeveloped sites.Exceptional Maneuverability with Multi-Angle Steering:
The crane’s tires are capable of 90-degree steering, enabling sharp directional changes ideal for confined or complex field layouts. It also supports both 20° and 45° diagonal travel modes, allowing the crane to navigate along curved or angled paths commonly encountered in bridge construction and similar projects.
Ideal for bridge erection, viaduct construction, and other major infrastructure applications, this tire gantry crane combines rugged engineering with intelligent features to deliver reliable, on-site heavy load management with minimal ground preparation.
Applications of Beam lancher
The Beam Launcher Tire Gantry Crane serves as a versatile and high-performance lifting solution tailored to the demanding conditions of port and harbor settings. Engineered for precision and durability, it supports a wide range of tasks—from cargo management to infrastructure development—enabling smoother, safer, and more efficient maritime operations.
Key Operational Uses:
Streamlined Container Management
In bustling port areas, the Beam Launcher accelerates container stacking and transfer processes. Its high lifting capacity and smooth trolley movement allow containers to be securely positioned, even in tightly organized storage yards. This leads to better space utilization and faster vessel turnaround times.Port Infrastructure Assembly and Upgrades
Whether installing new loading gantries, conveyor supports, or warehouse structural elements, the crane offers precise placement of large beams and prefabricated sections. Its ability to handle heavy and oversized parts makes it essential during construction, expansion, or modernization of terminal facilities.Maintenance and Component Replacement
The crane simplifies the replacement of worn or damaged port machinery—such as hoists, spreaders, or segments of cargo handling systems. Its flexible steering and stable outrigger system provide access to confined or elevated areas, reducing equipment downtime and supporting continuous port activity.Handling Oversized and Specialized Cargo
For non-containerized freight—including heavy machinery, wind turbine parts, or industrial modules—the Beam Launcher ensures safe and controlled movement across the terminal. Its hydraulic control and adjustable steering modes allow operators to navigate around existing infrastructure with accuracy.Rapid Response in Critical Situations
In cases of urgent cargo discharge—such as humanitarian aid or time-sensitive equipment—the crane’s autonomous power supply and high maneuverability enable quick deployment. This agility is vital when conventional equipment is unavailable or when working in restricted zones.Enhanced Worksite Safety and Risk Reduction
With electro-hydraulic controls and a robust box-type frame, the crane delivers dependable performance during complex lifts. Its stability and precision lower the risk of load shifts or drops, protecting personnel, cargo, and port assets.
From daily terminal activities to specialized project support, the Beam Launcher Tire Gantry Crane elevates operational standards in port and harbor logistics. Its combination of power, precision, and portability makes it a reliable partner in modern maritime and industrial applications.
