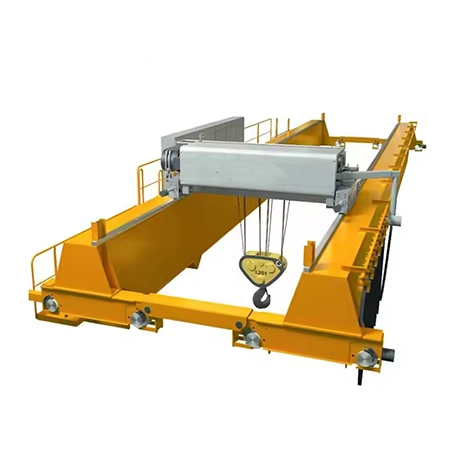

Engineered through the integration of global technologies and modular design principles, this advanced overhead crane delivers high-performance lifting solutions for industrial applications. By utilizing innovative materials and precision engineering, it ensures lightweight construction, energy efficiency, and minimal maintenance while meeting rigorous international standards.

Key Technical Specifications & Design Features

• Robust Structural Design:
  The main beam features a patented U-shaped box structure made from high-strength Q345-B steel, formed using a hydraulic process for enhanced durability and optimized weight distribution. The connection between the main and end beams utilizes high-strength bolts, ensuring structural integrity and simplified on-site assembly.

• Advanced Lifting Mechanism:
  Designed in compliance with FEM, DIN, and IEC standards, the hoisting system incorporates a hardened gear reducer, precision-machined gears, and a steel drum for smooth and reliable operation. A variable frequency drive (VFD) enables precise speed control and smooth acceleration.

• Modular Trolley & Drive System:
  The crane trolley is available in compact winch designs or specialized hoist configurations for medium-to-low tonnage applications. Both the crane and trolley travel mechanisms utilize European-style three-in-one drive units, which combine the motor, brake, and reducer into a compact, sealed system. This design minimizes noise, prevents oil leakage, and extends service life.

• Intelligent Control & Operation:
  Operators can control the crane via an ergonomic cabin or remote control system. The cabin includes an adjustable seat, dual consoles, an alarm system, energy-efficient lighting, and windshield wipers. Full variable frequency control allows the crane to handle heavy loads at low speeds and lighter loads at higher speeds, improving efficiency and reducing energy consumption.

• Comprehensive Safety Systems:
  Standard safety components include overload protection, polyurethane buffers, travel limit switches, low-voltage protection, emergency stop controls, and optional PLC integration. These features ensure secure operation under various working conditions.

• Customizable Attachments:
  Depending on application needs, the crane can be equipped with specialized lifting devices such as magnet plates, grabs, or C-hooks for handling different types of materials.

This crane is ideal for demanding environments where reliability, safety, and adaptability are essential. Its modular design and compliance with global engineering standards make it a versatile and long-lasting solution for modern industrial facilities.
