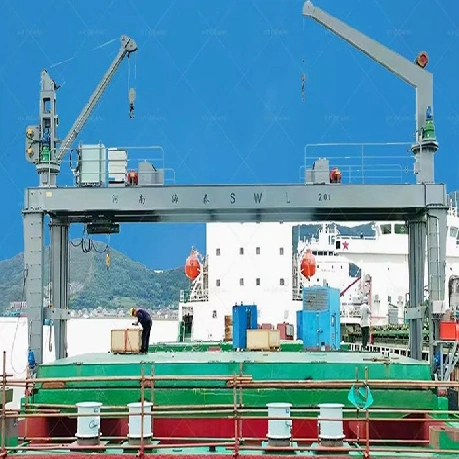

What is Marine Hatch Cover Gantry Crane？
Our hatch cover gantry crane is engineered for the precise and efficient handling of cargo vessel hatch covers. It facilitates safe lifting, lowering, and organized stowage of these heavy covers on the dock. With a robust lifting capacity ranging from 3 to 40 tons, this crane is fully customizable. Key dimensions like the span and lifting height are tailored to your specific operational layout and vessel requirements.
Structurally, the crane integrates a heavy-duty portal frame that ensures long-term stability under dynamic loads. Its core functionality is driven by a synchronized dual-hoist mechanism. Each independent hoist powers two wire rope hooks via precisely engineered pulley assemblies mounted on either side of the gantry's main beam. This configuration allows the two hoists to collectively operate a total of four hooks. These hooks engage simultaneously with the four corners of a hatch cover, ensuring a perfectly balanced and stable lift that prevents any tilting or swinging of the load.
Features of Marine Hatch Cover Gantry Crane
The complete system comprises several integrated subsystems:
A rigid portal frame providing the main structural support.
A precise traveling mechanism enabling smooth longitudinal movement along the dock on robust rails.
The powerful hoisting system, which includes the winches, wire ropes, hooks, and sheaves.
Key Operational Advantages:
Engineered Structural Integrity: The crane's framework is calculated for optimal strength-to-weight ratio, ensuring durability and reliable performance cycle after cycle.
Controlled Load Handling: The synchronized four-point lifting system guarantees exceptional stability during the entire lifting and transfer process, mitigating risks associated with unbalanced loads.
Integrated Safety Protocols: Built-in overload protection devices and fail-safe brakes are standard, prioritizing the security of both personnel and equipment.
Streamlined Automated Workflow: The control system allows for seamless coordinated motion, enabling a single operator to manage the entire hatch cover handling process with efficiency.
Versatile Multi-Function Capability: Designed not just for lifting and lowering, the crane also assists in the systematic collection and neat stacking of multiple hatch covers.

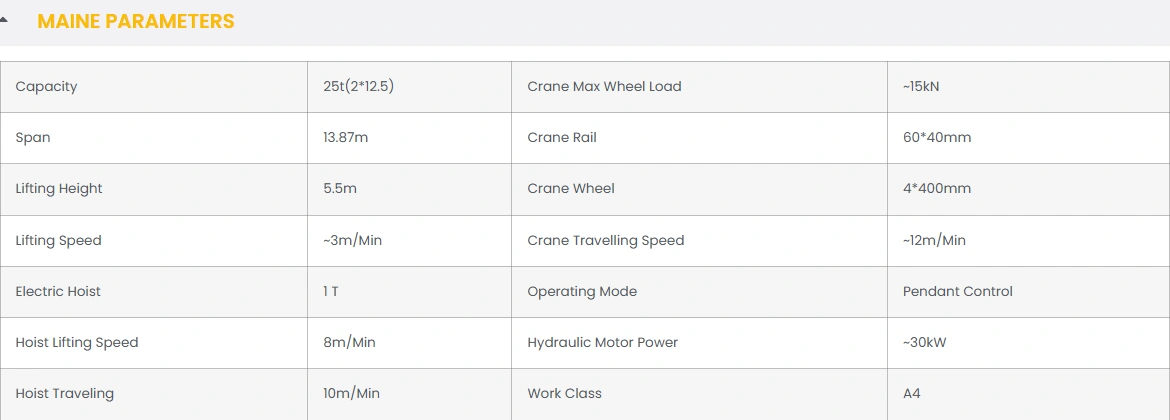

Technical Parameters of Marine Hatch Cover Gantry Crane
What are the applications of Marine Hatch Cover Gantry Crane
Our specialized hatch cover gantry crane delivers critical efficiency and safety for shipboard cargo access operations. Engineered specifically for vessel decks, this robust system streamlines the management of heavy hatch covers across diverse maritime workflows.
Core Operational Functions:
Cargo Hold Accessibility for Loading/Unloading: The crane enables rapid and secure removal and replacement of hatch covers on bulk carriers and container vessels. This direct access to the cargo hold significantly accelerates port turnaround times by minimizing delays between unloading and loading phases.
Scheduled Maintenance & Structural Inspection: It allows crews to safely lift and position covers for routine checks, seal replacements, or structural repairs. This proactive maintenance is vital for preventing water ingress and preserving the integrity of both the hatch covers and the stored cargo.
Stability Management Support: During ballast operations that adjust a vessel's trim and stability, the crane provides the precise control needed to open or secure hatch covers as required. This contributes directly to the vessel's operational safety and seaworthiness.
Rapid Response in Critical Events: In emergencies, such as suspected hold flooding or the need for emergency cargo access, the crane facilitates the immediate removal of hatch covers. This swift action is crucial for damage assessment and initiating containment procedures.
Adaptation for Modern Automated Terminals: The crane's design is compatible with automated control systems, allowing it to be integrated into smart port workflows. This integration enables precise, remote-controlled cover handling, reducing manual labor and enhancing operational consistency.
Versatility Across Marine Vessels: Its customizable design ensures effective performance on a wide range of ships, including general cargo carriers, oil tankers, and large container ships, meeting the specific cover dimensions and handling protocols of each vessel type.
By ensuring reliable and efficient hatch cover management, this gantry crane serves as a fundamental asset for enhancing port productivity, enforcing safety standards, and supporting the smooth execution of all cargo-related activities on deck.
