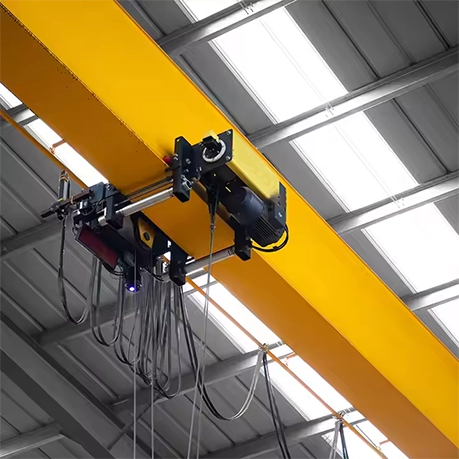

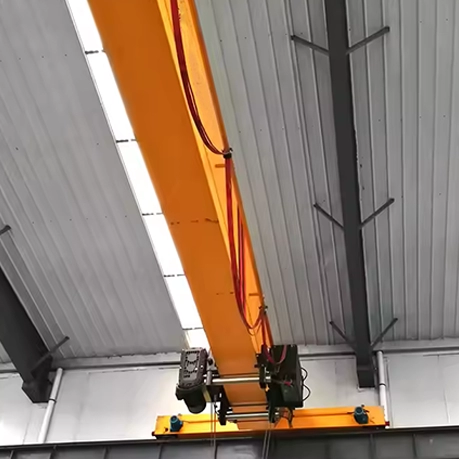

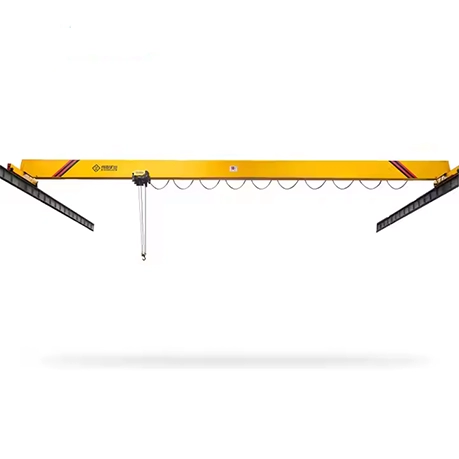

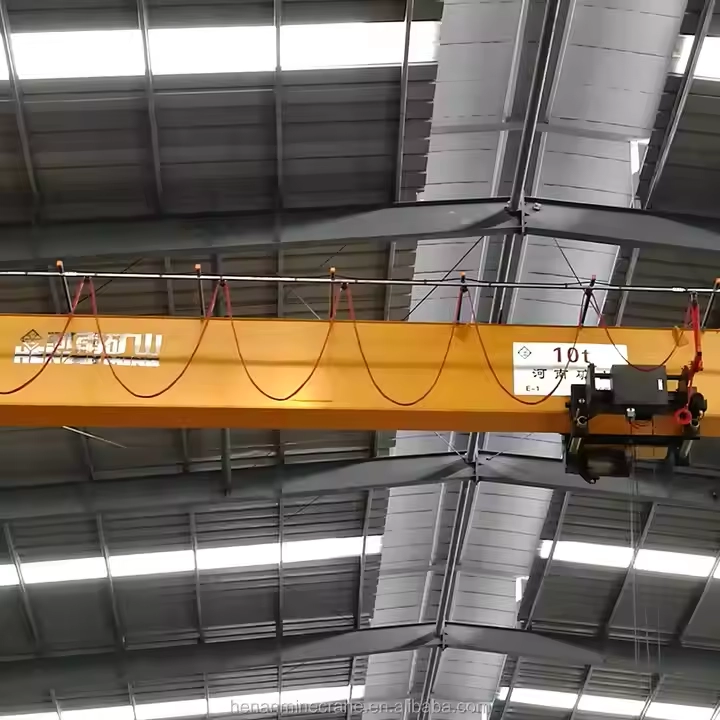

Engineered for precision and performance, this European-style single girder overhead crane integrates advanced lifting technology with intelligent control systems. The crane utilizes a high-performance ND-series wire rope hoist, enabling dual-speed lifting for adaptable operation. Travel motions—both cross and long travel—are driven by variable frequency motors, ensuring smooth acceleration and precise positioning.

Structural integrity is assured through compliance with international standards, including FEM, DIN, and ISO. The crane’s compact girder and trolley configuration maximizes usable workspace, while the optimized wheel frame design enhances balance and simplifies installation.

Key Features & Mechanisms:

• High-Efficiency Hoisting System: Features a helical gearbox with self-lubricating gears and a double-disc electromagnetic brake for reliable, low-noise performance.

• Robust Motor & Protection: Motors are rated IP54 with Class F insulation, and include overload protection for extended service life.

• Flexible Control Options: Choose between pendant control or remote radio operation. With thousands of frequency settings, multiple cranes can operate simultaneously without interference.

• Low Maintenance Design: The reducer is housed in a lightweight aluminum alloy casing, and critical components are pre-lubricated for life within the safety service cycle.

Customization Support:

We tailor cranes to your facility and workflow. Please provide the following for a customized solution:

1. Lifting Capacity (tons)

2. Span Length

3. Lifting Height (hook center to floor)

4. Voltage & Power Supply Details

5. Rail Requirements & Travel Distance

6. Application Environment (e.g., material type, temperature)

7. Plant Layout or Dimensional Drawings (if available)
