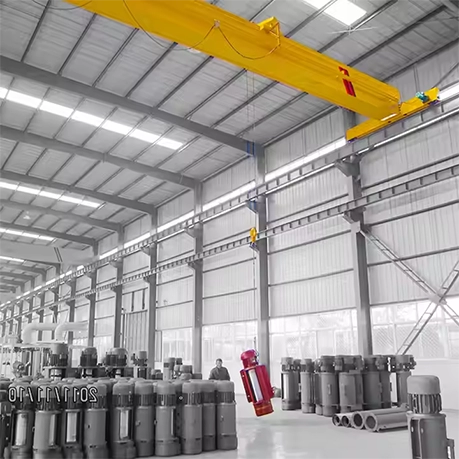

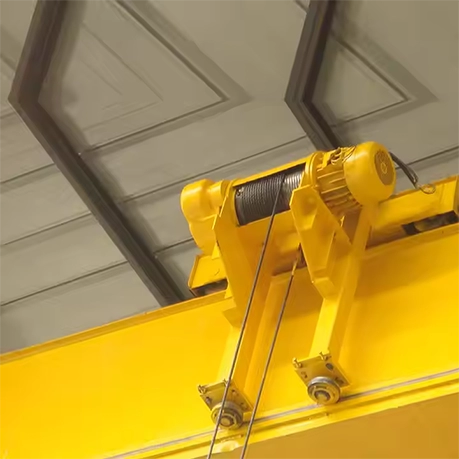

This overhead crane system integrates a robust box-type main girder, precision-engineered from welded steel plates for superior structural integrity. The innovative side-suspension crab design features a reinforced framework with a permanently mounted electric hoist, uniquely elevated above the girder to maximize hook approach and lifting height without increasing overall system dimensions.
Our drive mechanisms utilize conical rotor motors with direct gear transmission, delivering reliable braking performance and consistent power transfer. The box-girder construction incorporates dual-level horizontal guide wheels and offset rails to prevent derailment and eliminate track chewing, ensuring long-term operational stability.
The trolley system employs independent drives with optional soft-start or variable frequency control, enabling smooth acceleration and precise load positioning. Three operational interfaces—pendant control, wireless remote, and customizable cabins (open/closed configurations)—provide flexibility for diverse working environments.
Technical Specifications & Customization:
Load Capacity: Customizable (1-80 tons)
Span: Tailored to your facility layout
Lifting Height: Optimized through elevated hoist design
Drive Options: Standard/Soft-start/VFD
Safety Systems: Overload limiter, dual-position limit switches, interlock protection
Frequently Asked Questions:
What specifications are needed for quoting?
Please provide key parameters: required lifting capacity, span dimensions, lift height, and power supply specifications. Detailed layouts or facility drawings help us optimize the solution.Are hazardous environment modifications available?
Yes, we engineer specialized versions including acid-resistant coatings and explosion-proof components for challenging operating conditions.Do you offer complementary lifting accessories?
We supply integrated lifting solutions including sling systems, specialized clamps, material grabs, and electromagnetic handling devices.What installation support do you provide?
Our certified engineers offer on-site installation supervision, operational training, and commissioning assistance worldwide.What safety features are included?
Multi-layer protection systems include: intelligent overload restriction, dual-direction travel limits, and mechanical interlock devices to prevent operational errors.
Space-Optimized Lifting Solutions for Modern Facilities
The LDP electric single-girder crane represents a breakthrough in compact lifting technology, specifically engineered for facilities where vertical space comes at a premium. Unlike conventional overhead cranes, its innovative side-mounted hoist configuration creates exceptional hook clearance while minimizing structural intrusion - effectively turning height limitations into operational advantages.
Industrial Applications Where Excellence Meets Practicality
1. Manufacturing & Processing Plants
Ideal for retrofitting existing production lines where headroom constraints previously limited automation capabilities. The system enables seamless integration above assembly stations, machinery areas, and processing zones without requiring costly facility modifications.
2. Logistics & Storage Operations
Transform limited vertical space into functional lifting capacity in distribution centers and storage facilities. The crane's reduced bay requirements allow for higher storage density while maintaining full material handling capabilities for loading/unloading operations.
3. Maintenance & Service Facilities
Provide reliable lifting solutions in equipment repair shops, automotive service bays, and industrial maintenance areas where overhead clearances are typically restricted by existing infrastructure and utility systems.
4. Specialized Construction Applications
Support precise material placement in interior construction projects, prefabrication plants, and modular building facilities where conventional lifting equipment cannot operate effectively due to spatial limitations.
5. Industrial Infrastructure Upgrades
Enable modernization of legacy facilities, historical buildings, and converted spaces where structural elements impose strict height restrictions on material handling systems.
6. Production Support Environments
Deliver essential lifting capacity in supporting operations such as tool rooms, component preparation areas, and quality control stations that require overhead handling within confined spaces.
Strategic Advantages for Space-Constrained Operations:
Maximizes usable hook travel within limited vertical dimensions
Eliminates need for expensive facility modifications
Enables automation in previously inaccessible areas
Maintains full lifting capacity despite compact profile
Reduces overall project costs through space-efficient design
This crane system addresses the critical challenge faced by many modern industrial operations: achieving maximum functionality within minimal spatial footprints. By optimizing the relationship between structure and workspace, it delivers performance where traditional equipment cannot operate effectively.
