Introduction of Single Jib Portal Crane
Engineered for efficiency in congested port environments, our port cranes feature a innovative design where the rotating column connects to the vertical column, or alternatively, a large rolling bearing slewing device links directly to the gantry. This core engineering principle significantly minimizes the tail swing radius of the upper structure. Simultaneously, the gantry framework is optimized to reduce the overall pier coverage area—the ground-level footprint of the crane—enabling multiple units to work seamlessly side-by-side on the same vessel. This versatile design, proven in ports, is also highly effective in shipyards and large-scale construction sites like hydroelectric power stations.
Features of Single Jib Portal Crane
Operational Mechanics & Key Features:
The crane's functionality is driven by four primary mechanisms: hoisting, slewing (rotation), luffing (boom raising/lowering), and travelling. The first three are mounted on the rotating superstructure, which completes a full cycle with every operation. This section also supports a luffing boom (single or combination type) and the operator's cab. The travelling mechanism, located at the gantry base, allows for precise positioning of the entire crane along the quay. For bulk material handling, optional attachments like a telescopic chute and belt conveyor can be integrated, dramatically boosting productivity when used with a grab bucket. Safety is paramount, with standard protections including overload or moment limiters, rail clamps, and comprehensive electrical safeguards.
Floating Crane Capabilities:
Our floating crane model is a self-contained lifting solution installed on a vessel, ideal for various cargo handling tasks. It complies with the China Classification Society (CCS) "Code for Lifting Appliances of Ships and Offshore Installations" (2007) and its subsequent amendments. This machine utilizes a balanced, gear-rack luffing system for smooth and precise boom movement.
Core Components & Control:
The floating crane is comprised of several integrated systems:
Power Mechanisms: Dedicated hoisting, luffing, and slewing systems.
Structural Framework: The jib system, main column, turntable, and support cylinder.
Control & Access: A fully-equipped machine room, operator's cab, and safe access ladder/railing systems.
Control System: An advanced electrical control system for seamless operation.
It can be configured for use with a hook or a grab. The crane performs hoisting, luffing, and 360-degree continuous rotation. These motions can be conducted individually or in synchronized combination. All major mechanisms utilize AC variable frequency control for smooth, precise speed regulation. Essential limit switches and interlocking protection devices are standard across all systems to ensure operational safety and equipment integrity.

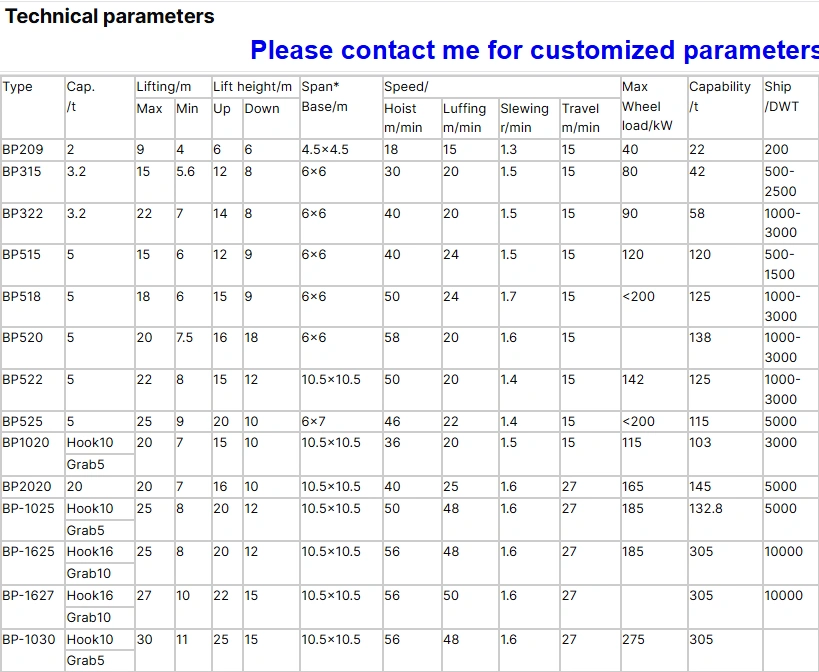

Technical Parameters of Single Jib Portal Crane
