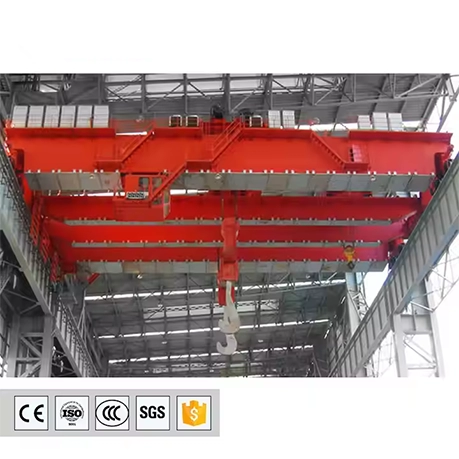

Double Girder Ladle Crane

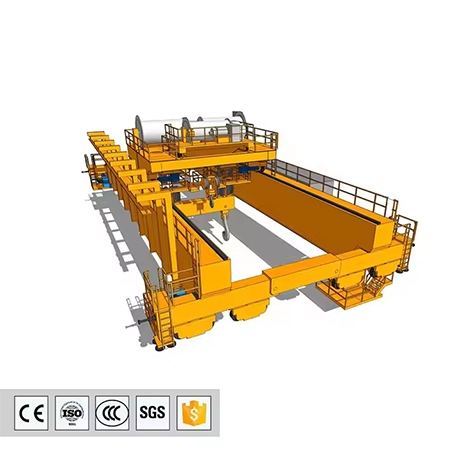

Ladle Crane
Double Girder Ladle Crane

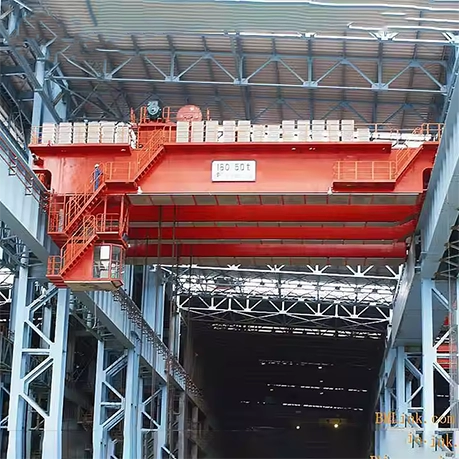

Steel Mill Ladle Crane
Casting Ladle Crane

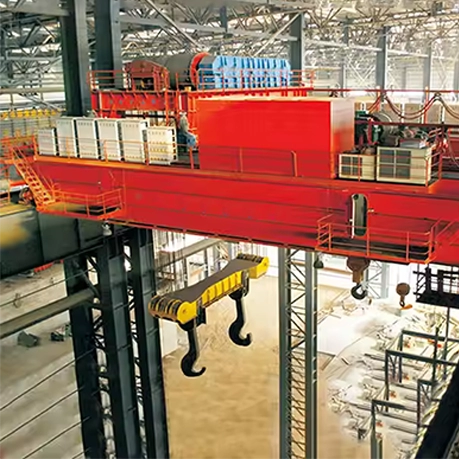

Double Girder Ladle Foundry And Casting Steel Mill Overhead Crane
Ladle Crane
Double Girder Ladle Crane
Steel Mill Ladle Crane
Casting Ladle Crane
Double Girder Ladle Foundry And Casting Steel Mill Overhead Crane
Authentication mark:
CCC
CE
This product can be customized according to your needs. Please click the CONSULT button for more information.
Lifting capacity:
Lifting Height:
Span:
Voltage/Hertz:
Job level:
  • A6
  • A7
Apply : Factory,workshop,warehouse,power station,logstic,etc.
CONSULT
WhatsApp
CATALOGUE
HOT PRODUCTS
Product Overview

Engineered for the rigorous demands of modern steelmaking, where cycles are intense and downtime is costly, our double girder overhead crane is built for ultimate reliability. Its core mission is to ensure the secure handling of molten ladles, with fail-safe engineering that prevents tipping or accidental release, even in the event of a component malfunction.


Robust Construction & Simplified Maintenance
The crane features a clean, high-strength structural design. This intentional simplicity allows for exceptionally quick servicing and component replacement, minimizing interruptions to keep your production line flowing continuously.


Operational Excellence and Core Safety Mechanisms
Operational safety is governed by a comprehensive Standard Operating Procedure (SOP). At the heart of its functionality is a suite of integrated and optional safety technologies, designed to create a secure operating envelope and protect both personnel and assets.


Key Safety & Operational Features:

  1. Visual/Audible Pre-Alert System: A combination of rotating beacon lights and a distinct alarm signals the crane's movement, enhancing worksite awareness.

  2. Anti-Collision Infrared System: Wireless infrared detectors create an invisible protective shield, automatically preventing interference with other equipment in the workspace.

  3. Precision Hoist Limiter: This device automatically cuts power at pre-set upper and lower lifting points, preventing overtravel and potential cable damage.

  4. Travel End Limit Switches: Robust switches reliably halt the crane's bridge and trolley movement at the boundaries of the runway, preventing mechanical overrun.

  5. Electrical System Protections:

  • Undervoltage Guard: Protects the system from damage due to power sags.

  • Overload Cut-Off: The system automatically ceases operation if a lift exceeds the rated capacity.

  • Phase Sequence Monitor: Ensures the motor connections are correct, preventing reverse operation and potential damage.

  • Instantaneous Emergency Stop: A manually activated, high-priority circuit to halt all crane functions immediately.

  • Heavy-Duty Buffers: Premium spring buffers are installed to absorb and dissipate kinetic energy, smoothing the end-of-travel stops and reducing structural stress.


    • This crane can be customized with additional protective devices to meet the specific needs of your foundry, ensuring a comprehensively secure working environment.

Application Scenario

As a cornerstone of modern metallurgical operations, the Double Beam Ladle Crane is precision-engineered for the extreme conditions of metal production facilities. It is the backbone of material flow in environments where handling high-temperature, molten materials demands unwavering reliability and robust performance.


Core Application Environments:

  1. Primary Steelmaking & Continuous Casting
    Central to the integrated steel plant, this crane is tasked with the critical transfer of molten steel from the furnace to the ladle and subsequently to the continuous caster. Its design ensures stability and control for transporting liquid metal across the melt shop, directly supporting uninterrupted production cycles.

  2. Foundry & Metal Casting Operations
    Within foundries, the crane facilitates precise pouring of molten iron, steel, or non-ferrous metals into molds. It enables accurate positioning for filling large casting pits or automated molding lines, ensuring metal integrity is maintained from the furnace to the mold cavity.

  3. High-Intensity Scrap Handling & Charging
    In Electric Arc Furnace (EAF) shops, this heavy-duty crane is instrumental in handling and charging massive scrap buckets. Built to endure the shock loads of heavy scrap, it ensures efficient and reliable charging sequences, which are vital for optimized furnace operation.

  4. Heavy Fabrication & Slag Processing
    Beyond molten metal, the crane manages heavy ladles containing slag and other by-products. Its rugged construction allows it to operate in slag yards and processing bays, moving materials for recycling or disposal despite abrasive dust and temperature variations.


Matching Duty Class to Operational Intensity:

The crane's configuration aligns with specific service regimes, ensuring optimal performance and longevity:

  • Class A5 (Moderate Duty): Suited for auxiliary roles in machine shops or assembly areas with infrequent lifting cycles.

  • Class A6 (Heavy Duty): Designed for frequent operation in metallurgical plants, supporting core processes like furnace charging or alloy addition.

  • Class A7 (Severe Duty): Built for the most demanding environments, including busy melt shops and continuous hot metal transfer, where high speeds and near-constant operation are the norm.


Equipped to integrate with walkways, high-intensity lighting, and other specialized accessories, this crane adapts to the complex workflows of heavy industry, providing a versatile and powerful solution for the world's most challenging material handling tasks.
