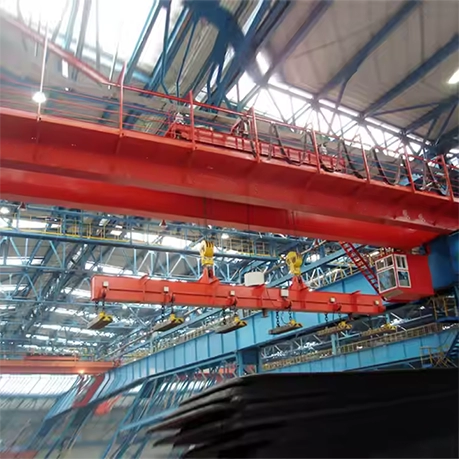

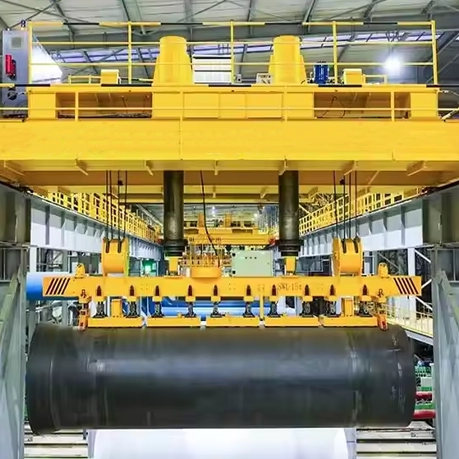

This advanced crane integrates a 360° rotatable electromagnetic lifting beam, engineered for efficient loading, unloading, and transportation of steel plates, structural sections, coils, and other heavy materials. It is ideally suited for steel plants, shipyards, ports, storage yards, and both indoor and outdoor fixed-span applications. Customizable operational features include variable speed control (with ratios of 1:10 or higher), overload protection with alert systems, remote operation capabilities, PLC automation, and integrated diagnostics with display, logging, and printing functions.
The hook and carrier beam feature a detachable connection, allowing for flexible use with electromagnetic chucks, clamps, or specialized lifting hooks. The carrier beam can be configured in two orientations—parallel or perpendicular to the girder—enhancing adaptability to various workspaces while offering inherent anti-sway performance. The system supports a range of specialized lifting tools, including electromagnetic suction cups and custom clamps, mounted directly beneath the beam.
Key Advantages
Lightweight yet robust structural design
User-friendly operation with minimal training required
High-strength magnetic force for secure load handling
Advanced safety mechanisms for reliable performance
Optional 360° rotating and extractable electromagnetic beam for complex applications
Engineered as an overhead crane solution utilizing a rotating electromagnetic beam to securely lift and maneuver heavy loads via controlled magnetic force
Frequently Asked Questions
Q1: What details are needed to request a quote?
A1: Please provide specifications such as lifting capacity, lifting height, span, operating voltage, and any special requirements. Detailed layouts or drawings are also helpful.
Q2: Do you support custom crane solutions?
A2: Yes. As a manufacturer with an in-house engineering team, we develop tailored designs based on your specific operational needs and site conditions.
Q3: Is technical installation support available?
A3: We offer professional installation assistance worldwide. If required, please inform us in advance to arrange an optimized installation plan.
Q4: How is product quality assured?
A4: We conduct rigorous quality inspections throughout production and perform comprehensive equipment testing prior to shipment, accompanied by an official quality certificate.
Q5: Which international certifications does your crane hold?
A5: Our cranes are certified by CE, ISO, GOST, SGS, TÜV, BV, and other recognized international standards.

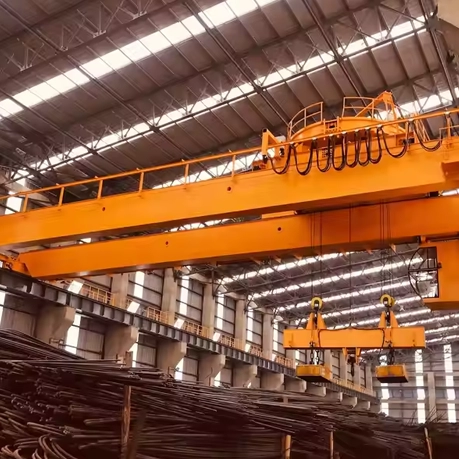

The crane is equipped with a rotatable hanging beam, which is suitable for loading, unloading and handling steel plates, section steels,coils and other materials in indoor or outdoor fixed spans of steel plants, shipyards, ports, storage yards and warehouses. QL bridge crane with carrier-beam is applícable to hoisting long section steel,bars, plates,scrap steel, mill coil and so on.
The crane has slewing carrier-beam, is applicable to the fixed span at indoor outdoors of steel mill, shipyard, port, yard and storage etc. It is used for loading, unloading and carrying steel plate, profile steel, and spool etc. It is especially applicable to lift material of different specifications and which needs Horizontal rotation, The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging, The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs etc.

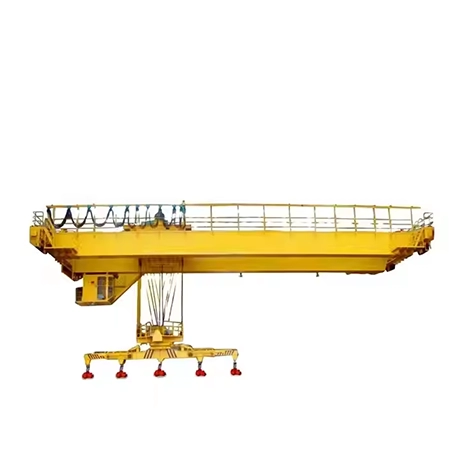

Product Application Overview: Hang Beam Double Girder Overhead Crane
The Hang Beam Double Girder Overhead Crane is engineered for versatility and efficiency in material handling across various industrial settings. Its unique design features a rotatable hanging beam that enhances its operational capabilities, making it an ideal choice for loading, unloading, and transporting a variety of materials, including steel plates, section steels, coils, and other heavy items.
Key Applications:
Steel Plants: In steel manufacturing facilities, this crane is instrumental in managing heavy-duty tasks such as lifting and moving large steel sheets, bars, and coils. Its ability to rotate horizontally allows for precise placement, optimizing production processes.
Shipyards: Within shipbuilding environments, the crane facilitates the handling of significant components and materials, including ship hull sections and large machinery. The capability to maneuver heavy loads safely contributes to the efficiency of ship assembly and repair operations.
Ports and Terminals: The overhead crane is highly efficient for port operations, where the loading and unloading of cargo ships is critical. Its robust construction and reliable safety features ensure that it can handle various shipping materials, including bulk coils and steel products, with ease.
Storage Yards and Warehouses: In storage facilities, this crane streamlines the process of stacking and retrieving materials. Its design permits effective space utilization, and the integrated slewing mechanism allows for smooth handling of different types of materials without the risk of damage.
Functional Features:
Slewing Carrier-Beam: The crane's slewing carrier-beam offers optimal versatility, making it suitable for both indoor and outdoor applications within fixed spans.
Cross Structure Design: The crane features a reliable cross structure that provides excellent stability while minimizing the risk of swinging during operation. This enhances safety for operators and surrounding personnel.

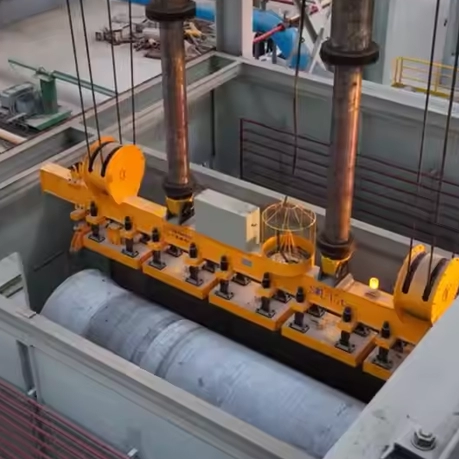

Adaptability: The lower section of the carrier-beam can accommodate specialized lifting attachments, including magnetic chucks and tongs, further expanding the crane's functionality. This adaptability allows for efficient handling of materials with varying specifications and forms.
In summary, the Hang Beam Double Girder Overhead Crane is a robust solution for managing heavy materials across diverse industries. Its combination of a rotatable hanging beam, reliable structure, and adaptability makes it an essential tool for enhancing operational efficiency and safety in various handling applications.
