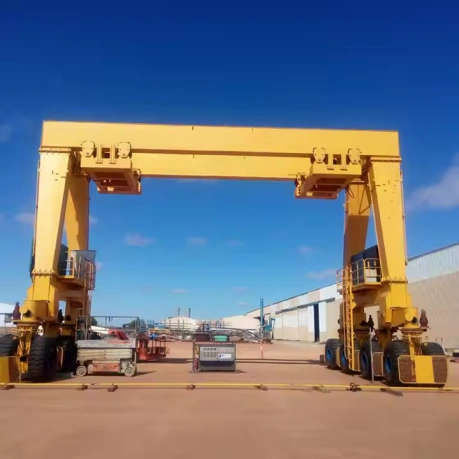

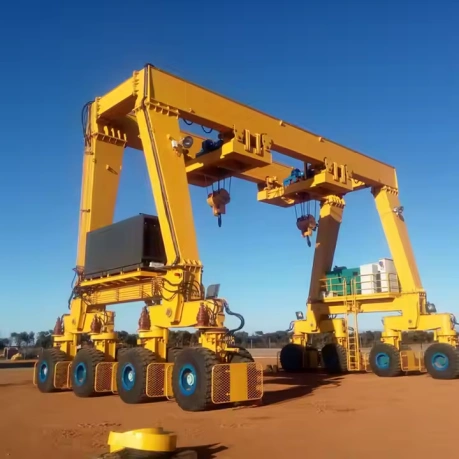

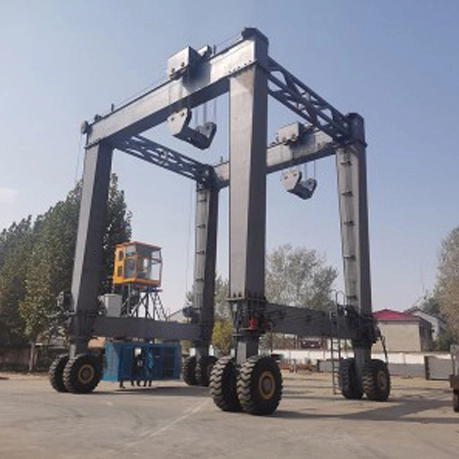

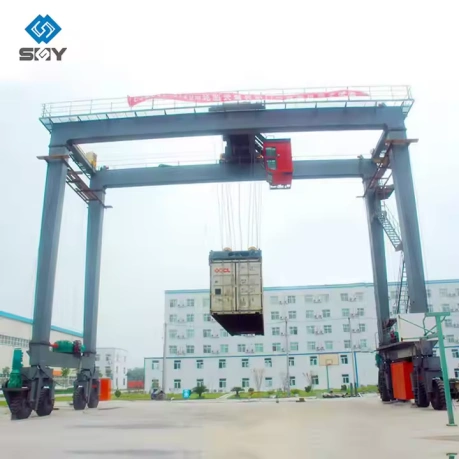

Introduction of Double Girder Tyre Gantry Crane
Engineered for superior performance in demanding environments like ports, terminals, and industrial yards, our Rubber-Tyred Gantry Crane represents a pinnacle of mobile lifting technology. This self-propelled crane offers unparalleled flexibility for transporting, stacking, and precisely positioning heavy containers and oversized materials. Its independent mobility, typically supported by robust diesel generator sets ranging from 100 kW to 600 kW, eliminates the need for fixed rail tracks, granting exceptional operational freedom across various applications.
Features of Double Girder Tyre Gantry Crane
Key Engineering & Performance Features:
Robust Monobloc Main Girder: The primary structural framework utilizes a one-piece, high-strength U-shaped beam manufactured with advanced welding techniques. This design philosophy eliminates weak points associated with segmental welding, achieving an optimal balance of reduced structural weight and exceptional vertical/horizontal stiffness. The result is enhanced stability and significantly minimized wheel load on the ground.
Precision Travel System: Each end carriage is equipped with an integrated motor-reducer-wheel drive assembly. The incorporation of soft-start technology ensures smooth, jerk-free acceleration and deceleration, providing exceptional stability during movement and protecting the integrity of the load.
Optimized Operational Workflow: Designed for continuous, heavy-duty cycles, the crane delivers consistent and reliable performance. Its intelligent systems are tailored to maximize throughput and operational efficiency in high-capacity settings.
Enhanced Durability & Protection: Critical components, including the underside of the main girder, are treated with a specialized thermal-protective coating. This significantly improves heat resistance, safeguarding the structure and extending its service life in challenging climatic conditions.
Intelligent Control & Diagnostics: The electrical system is built with premium components from industry leaders like Siemens or Schneider. Central to its operation are an advanced Inverter, a programmable PLC for precise control, and a comprehensive Condition Monitoring & Management System (CMMS) for real-time diagnostics and proactive fault prevention.
Versatile & Customizable Spreader: The crane features a specially engineered spreader capable of handling standard 20ft, 40ft, and 45ft containers. We specialize in developing custom, non-standard spreader solutions to meet unique and specific customer lifting requirements.
Low Maintenance & Longevity: Constructed from high-grade materials and engineered for durability, this RTG crane guarantees a prolonged operational lifespan with minimal maintenance needs, ensuring a lower total cost of ownership.

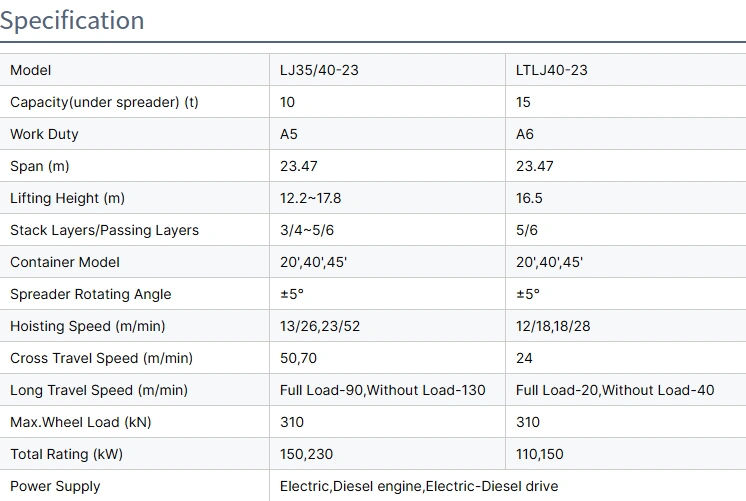

Technical Parameters of Double Girder Tyre Gantry Crane
About Henan Yuntian Crane
YunTian Group is a leading force in the global material handling industry, providing engineered crane solutions for a vast array of sectors. Our expertise spans universal bridge cranes, overhead cranes, EOT cranes, portal cranes, and specialized equipment like rail-mounted gantry cranes, quayside container cranes, ship loaders, unloaders, and mobile hydraulic platforms.
Strategically located in China's primary industrial hub for crane manufacturing, we leverage extensive supply chain advantages to deliver top-tier equipment at highly competitive prices, effectively saving on export costs for our international clients. Beyond equipment supply, we offer comprehensive turn-key projects, including professional installation, commissioning, and ongoing technical support.
Contact us today to discuss how our RTG crane can optimize your logistics and handling operations.
Applications of Double Girder Tyre Gantry Crane
Our Double Girder Rubber-Tyred Gantry Crane is engineered to drive productivity and flexibility in modern cargo handling. As a cornerstone of intermodal transport, it delivers unmatched performance across a spectrum of demanding operational environments, moving beyond traditional fixed-rail systems to provide true mobility and precision.
Core Operational Environments:

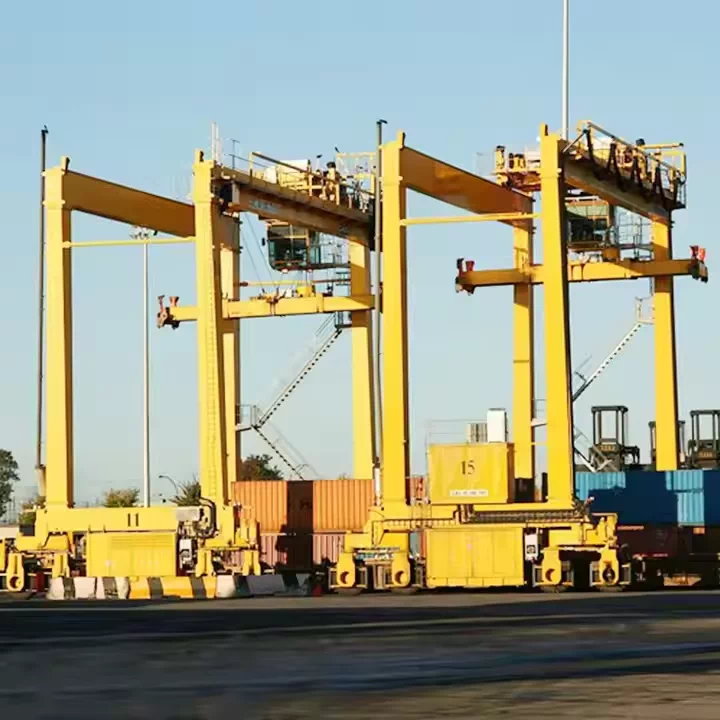

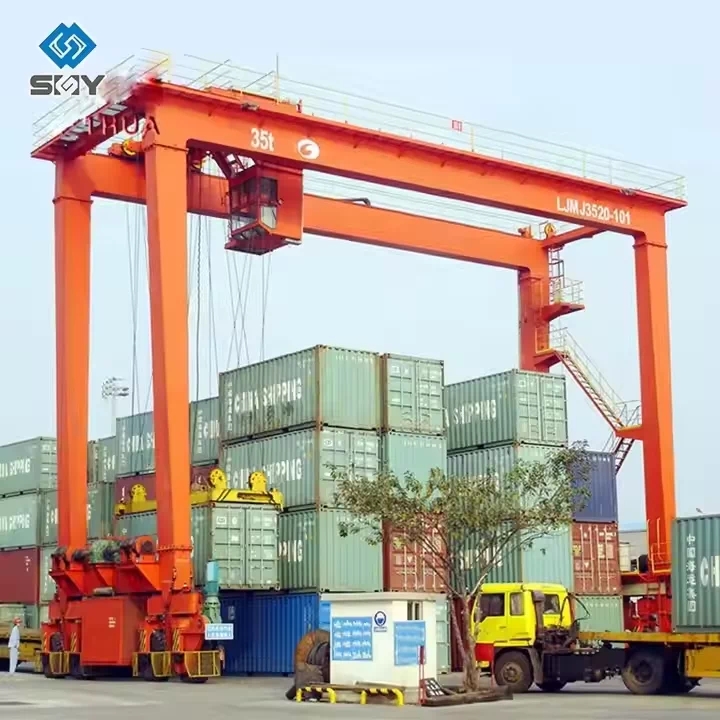

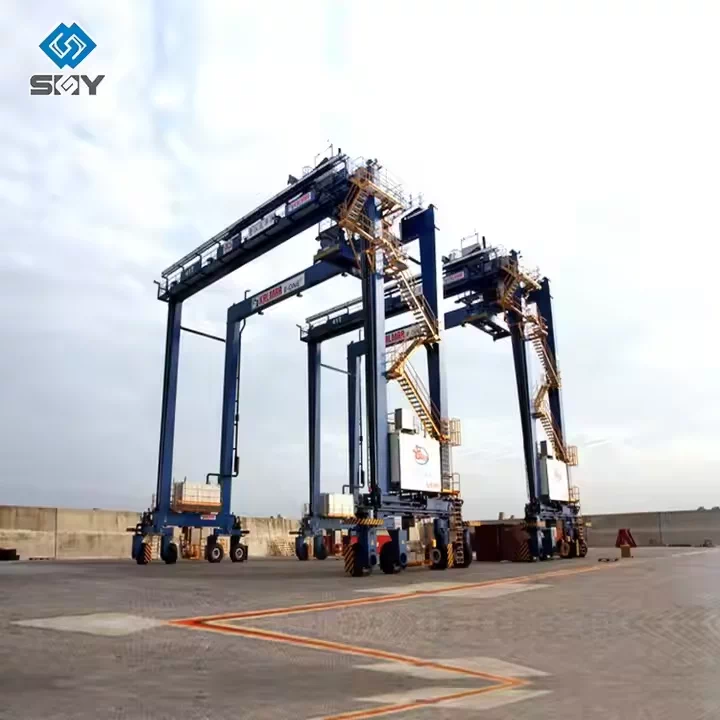

High-Velocity Port Container Yards
In bustling port terminals, where space optimization and rapid truck turnaround are critical, this crane excels. It seamlessly orchestrates the stacking, sorting, and direct transfer of ISO containers from yard to truck. Its superior mobility allows for dynamic lane changes and dense storage configurations, maximizing ground space utilization and accelerating the entire cargo flow cycle.Intermodal Rail-Truck Transfer Stations
Acting as a vital link between rail and road networks, this crane efficiently unloads containers from railcars for immediate road dispatch or temporary stacking. The rubber-tired design provides the crucial flexibility to service multiple rail lines and truck lanes without the constraints of fixed infrastructure, making it ideal for integrated logistics hubs.Demanding Port and Terminal Operations
Built for the rigorous demands of daily port activity, this crane handles heavy-duty lifting with consistent reliability. The integration of a sophisticated PLC-controlled frequency adjustment system allows operators to execute finely tuned movements for precise container spotting, even in high-wind conditions or congested areas, ensuring both speed and safety.Container Maintenance and Repair Facilities
Within service depots, this gantry crane is indispensable for handling containers requiring inspection, cleaning, or repair. It provides the precise positioning needed to move units between workstations, facilitating safe and efficient access for maintenance crews. Built-in overload protection is a key safety feature, preventing damage to both the container and the crane during these critical operations.Integrated Intermodal Transportation Hubs
In complex hubs that synchronize ship, train, and truck schedules, this crane's versatility is a key asset. It can be rapidly deployed across different zones of the terminal to manage workflow peaks, transfer containers between transport modes, and maintain a fluid supply chain, all while requiring minimal scheduled downtime.Customs Security and Cargo Inspection Zones
For customs and security checkpoints that require swift, secure handling of containers for scanning or physical inspection, this crane offers the necessary control. Operators can gently and accurately place containers into inspection bays, minimizing processing delays while upholding strict security and safety protocols.
Conclusion
From the dynamic environment of a major seaport to the precise demands of an intermodal rail hub, our Double Girder Rubber-Tyred Gantry Crane is a driving force behind efficient and scalable logistics operations. Its blend of powerful lifting capacity, intelligent control systems, and inherent mobility makes it a strategic investment for any operation focused on enhancing throughput, safety, and adaptability.
