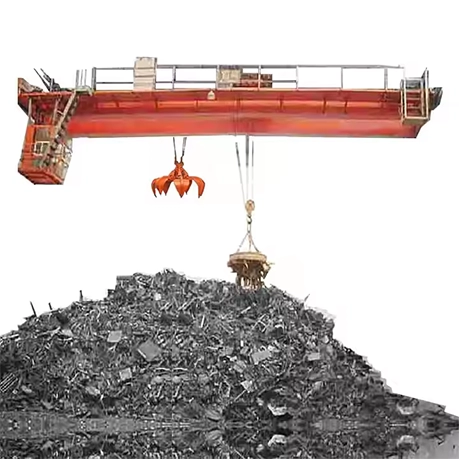

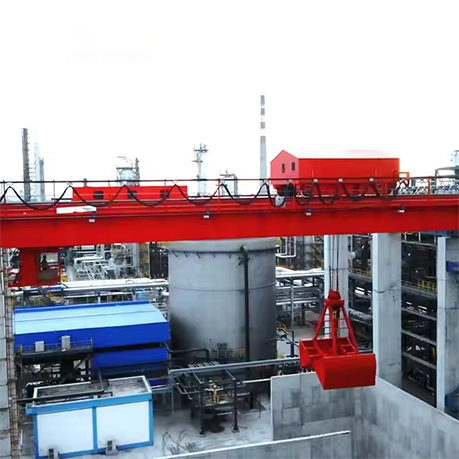

The QP Series Dual-Function Double-Girder Overhead Crane integrates grab and electromagnetic lifting technologies for versatile material handling. Engineered with a robust double-girder structure, it efficiently transports both bulk materials and ferrous items without requiring packaging or bundling.
Operational Mechanism:
The electromagnetic system utilizes energized coils to generate a temporary magnetic field, securely lifting steel components like sheets, scraps, or machinery parts. De-energizing the coils releases materials precisely at the target location. A backup power unit maintains electromagnetic functionality for up to 30 minutes during unexpected power outages, ensuring operational safety.

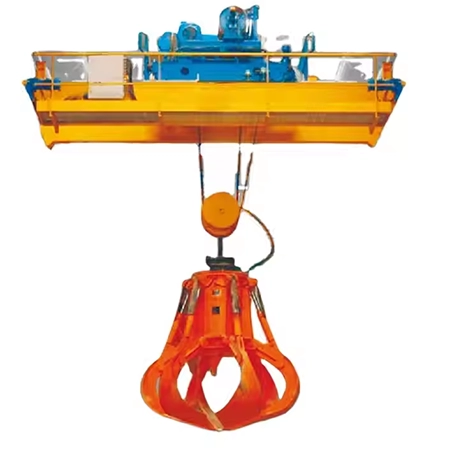

Grab Attachment Options:
Available in parallel or perpendicular orientation relative to the main girder
Configurations include two-lobe or four-lobe designs for handling scrap and bulk materials
Hoist systems support dual or quadruple wire ropes with mechanical/electro-hydraulic actuation
Structural Engineering:
Main Girder: Fabricated from Q235B/Q345B steel with CNC-cut components and zinc-rich epoxy coating
Trolley Assembly: Features heat-treated carbon steel gearing for enhanced durability
Operator Cabin: Constructed with high-strength framing and composite panels for optimal working conditions
Technical Specifications:
Lifting Capacity: 5t-16t (dual-function mode)
Cable Drum: Precision-wound with constant torque output
Travel Safety: Enhanced bumper height with polyurethane impact absorption
Advanced Safety Systems:
Smart overload protection with automatic motion restriction
Multi-stage travel limiting with wireless anti-collision capability
Emergency power-off controls with main contact isolation
Fail-safe hoist mechanism protection
Integrated audible/visual alert systems
Environmental protection for outdoor operation (rain covers, voltage stabilization)
Configuration Guidelines:
Specify operational environment parameters including temperature range and power supply specifications when ordering. The crane accommodates both indoor and outdoor applications with customizable control cabin access (side, end, or top entry).
This dual-purpose crane solution eliminates material transfer bottlenecks while maintaining compliance with international safety standards through its comprehensive protection systems and redundant safety features.
The integrated grab and electromagnetic lifting system in our dual-function overhead crane delivers exceptional flexibility for complex material handling requirements across multiple sectors. This advanced equipment seamlessly transitions between bulk material grabbing and precision ferrous metal transportation, eliminating operational bottlenecks in dynamic industrial environments.
Industrial Manufacturing & Metal Processing
Transfer raw steel coils and finished metal products using electromagnetic capability
Handle scrap remnants and production waste with grab attachment
Support continuous production lines with rapid material switching
Minimize equipment changeover downtime in metal fabrication facilities
Logistics & Supply Chain Operations
Optimize warehouse space through efficient stacking/retrieval of mixed commodities
Load/unload diversified cargo including packaged goods and metal components
Manage inventory containing both ferrous and non-ferrous materials
Enhance cross-docking efficiency in distribution centers
Port Terminal & Intermodal Operations
Accelerate vessel turnaround through rapid bulk cargo handling (coal, aggregates)
Streamline container yard operations with magnetic spreader compatibility
Process breakbulk shipments containing mixed material types
Reduce equipment fleet requirements through dual-function capability
Heavy Construction & Infrastructure Projects
Position structural steel elements with electromagnetic precision
Handle concrete segments and construction aggregates via grab mechanism
Support just-in-time material delivery to elevated work areas
Maintain project schedules through all-weather material handling capacity
Resource Recovery & Recycling Operations
Sort ferrous scrap from mixed waste streams using magnetic separation
Process bulk recyclables through adjustable grab configurations
Maximize material throughput in recycling classification systems
Reduce handling costs through single-equipment processing
Additional Specialized Applications
Power generation facilities (coal/biomass handling)
Shipbuilding and heavy equipment manufacturing
Railway maintenance depots and infrastructure projects
Mining and mineral processing operations
This dual-purpose crane solution eliminates the capital expense of maintaining separate specialized lifting systems while providing operational flexibility to adapt to changing material profiles. The seamless transition between functions allows operations managers to optimize material flow without compromising handling efficiency or workplace safety standards.
Implementation Benefits:
Reduced equipment investment through multifunction design
Enhanced operational flexibility for variable material streams
Improved space utilization through centralized material handling
Lower labor requirements through automated lifting solutions
Compliance with industrial safety standards across applications
For operations managing diverse material types or seeking to consolidate equipment fleets, this dual-function crane delivers measurable ROI through operational simplification and handling versatility.
