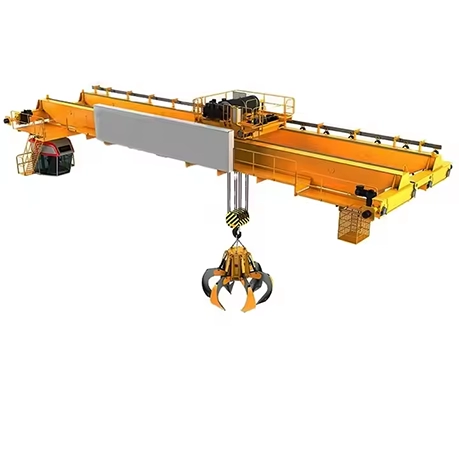

The QZ Electric Grab Bridge Crane is engineered for precision handling of bulk materials in demanding industrial settings. Its core structure features a reinforced box-type bridge, providing superior strength and resistance to fatigue under continuous heavy loads. The system integrates a specialized grab trolley, a precisely controlled trolley travel mechanism, an operator cabin, and an advanced electric control system.
Central to its operation is the grab trolley, which houses two independent mechanisms: a swiveling (or opening/closing) mechanism and a hoisting mechanism. The grab is suspended by four steel wire ropes. The operational cycle begins with the swiveling mechanism activating to close the grab, securely enclosing the material. Once closed, the hoisting mechanism immediately engages, lifting the evenly loaded grab. For discharge, the swiveling mechanism re-engages to open the grab and release the payload efficiently.
This crane shares the robust foundational design of standard hook bridge cranes but is specifically differentiated by its automated grab system.
Key Technical Features:
Customized Capacity Solutions: Designed and built to support specific customer capacity upgrade plans, this crane facilitates a transition to more productive and environmentally conscious industrial operations, with configurations tailored to your unique site layout.
Intelligent Control for Precision: An integrated PLC control system, combined with advanced positioning and anti-sway technology, ensures pinpoint load placement and smooth, high-efficiency movement cycles.
Robust Construction for Harsh Conditions: The crane's wide-box weight-bearing design offers exceptional durability and longevity. It is built to maintain reliable performance in challenging environments, including exposure to high temperatures, significant humidity, and dense fog.
Enhanced Autonomy in Low Visibility: Through its intelligent sensor suite, the crane performs automated grabbing, transporting, and unloading of materials even in low-visibility conditions, such as heavy fog, where manual operation would be hindered.
Remote Operation & Management: Enable full remote control and scheduling via a centralized management system. This eliminates the need for personnel to be physically present in the operational area, significantly enhancing safety and reducing manual labor requirements.

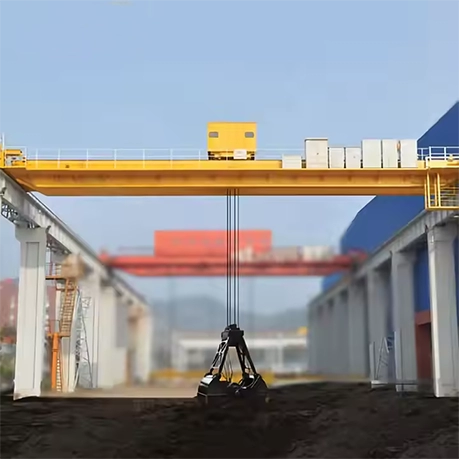

The Grab Double Girrier Overhead Crane specializes in handling bulk materials through its unique grab mechanism, which securely captures and transports loose substances in demanding industrial environments. Recent innovations from Henan Mine Crane have advanced intelligent, eco-friendly, and lightweight designs, with proven deployments across critical sectors including steel production, aerospace manufacturing, and petrochemical processing.
A notable collaboration with Guangxi Yiji Iron and Steel highlights the crane’s role in supporting industrial modernization—specifically in establishing a 10-million-ton metallurgical new material base. This partnership underscores a shared commitment to technological advancement and sustainable industrial growth.
Primary Application Areas
Steel Production & Metallurgy
Essential for transporting raw materials such as iron ore, coal, and scrap metal, this crane streamlines operations in steel mills and metallurgical plants. Its robust structure and precise control contribute to enhanced material flow and production uptime.Mining & Mineral Processing
In mining operations, the crane efficiently extracts and transfers minerals and ores. Its ability to operate reliably under harsh conditions—such as dust, moisture, and heavy loads—makes it ideal for use in extraction zones and processing facilities.Construction & Bulk Material Logistics
From handling sand and gravel to managing cement and aggregates, this crane supports large-scale construction projects by enabling rapid and organized movement of essential materials, directly contributing to on-site efficiency and timeline adherence.Petrochemical & Chemical Plants
The crane assists in transporting bulk chemical raw materials and processed products within refineries and chemical plants. Its anti-corrosion design and stable operation under high humidity or temperature variations ensure process safety and continuity.Shipbuilding & Aerospace Manufacturing
Advanced versions of the grab crane are increasingly used in shipyards and aerospace assembly plants. They facilitate the movement of large components and raw materials, supporting just-in-time production and precision assembly workflows.Collaborative Industrial Upgrading Initiatives
Through strategic partnerships like that with Guangxi Yiji, Henan Mine Crane continues to integrate intelligent control and remote operation technologies. These innovations allow the grab crane to perform in automated production lines and low-visibility environments—paving the way for fully digitized, unmanned material handling systems.
Summary
The Grab Double Girder Overhead Crane delivers versatile and high-performance solutions for industries that depend on efficient bulk material transport. By combining structural durability with smart operation features, it not only meets today’s industrial demands but also aligns with the ongoing shift toward automated and sustainable operations.
