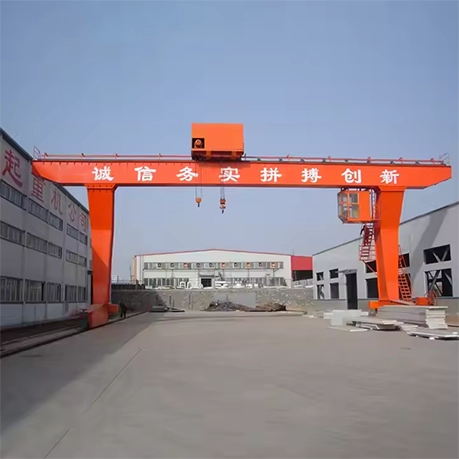

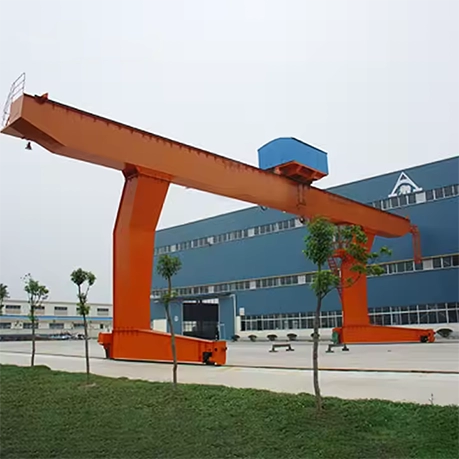

The L-Type Single Girder Gantry Crane is engineered with a robust, box-type structural design for enhanced load-bearing integrity and long-term durability. Its core framework integrates a single main girder combined with an L-shaped leg support system, creating a stable lifting solution for handling extended or bulky items such as steel tubes, ladles, and lengthy materials.
A key safety feature includes the trolley’s anti-roller mechanism, which prevents lateral displacement during operation. Additionally, the lower cross beam is fitted with a rail clamp to secure the crane when not in motion, reducing unintended movement. Designed for intermediate-duty cycles, this crane delivers consistent performance under regular industrial workloads.
Operational control is facilitated through multiple options: cabin control, remote radio operation, or pendant station—providing flexibility based on workspace layout and user preference. The electric trolley travels smoothly along the girder, allowing precise load positioning and easy material turnover, thanks to the accessible L-shaped structural configuration.
Main Features:
Compact and efficient design with high operational stability
Straightforward installation and minimal maintenance requirements
Integrated overload protection and low-voltage safety mechanisms
Flexible control via pendant or wireless remote
Reliable performance with low lifecycle cost

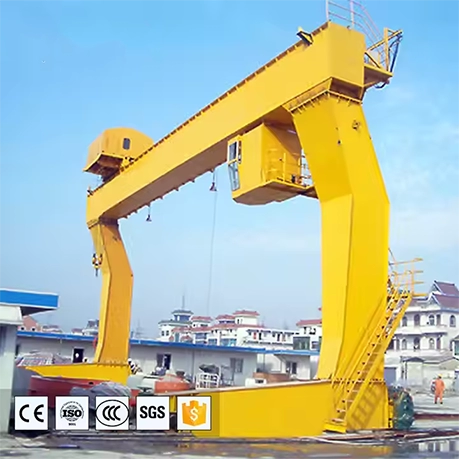

Our manufacturing facilities comply with international standards, including CE, GOST, and SGS certifications, supported by ISO 9001 quality management, ISO 14001 environmental systems, and occupational health and safety protocols. Each crane undergoes rigorous quality verification through advanced testing methods, ensuring product reliability and compliance with global operational standards.

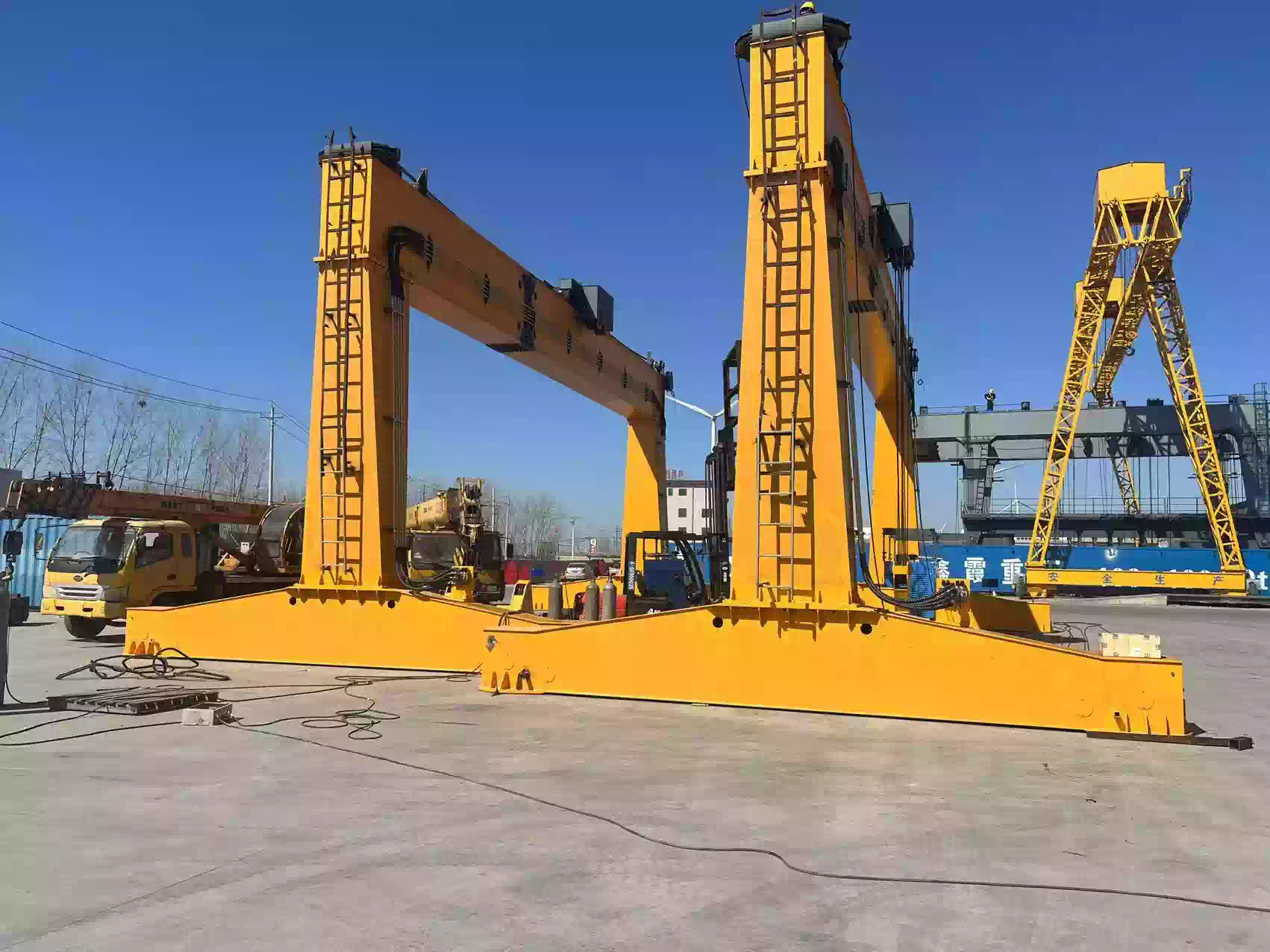

The L-Type Single Girder Hook Gantry Crane with Winch serves as a flexible and powerful lifting system optimized for open-air industrial settings. Engineered to handle demanding material transfer tasks, it brings reliability and operational ease to various sectors where conventional indoor cranes are not applicable.
Primary Use Cases:
Construction & Infrastructure Projects
Ideal for transporting steel beams, precast concrete elements, and construction timber across the worksite. The crane’s smooth traversal and precise winch control allow accurate placement of materials, supporting faster project completion with reduced manual intervention.Logistics & Storage Yards
Suited for outdoor warehousing, the crane efficiently loads and unloads palletized goods, bulk containers, and machinery. Its winch mechanism and wide span enable high stacking and orderly arrangement of goods, maximizing yard space and throughput.Port & Shipyard Operations
Capable of managing cargo such as shipping containers, machinery, and ship components during vessel loading or unloading. The crane’s stability and lifting strength ensure safe transfer between dock and ship, enhancing port-side workflow.Manufacturing & Assembly Plants
Supports the movement of raw materials to assembly stations and assists in relaying finished goods to dispatch zones. Its adaptable configuration aids in maintaining continuous production flow, especially in facilities with limited fixed crane infrastructure.Equipment Service & Maintenance Bays
Enables safe lifting of heavy engines, industrial machinery, or vehicle parts during repair or overhaul. The gantry design offers mobility and access without permanent installation, making it suitable for temporary or shared workspaces.Open-Air Workshops & Fabrication Units
A practical option for outdoor fabrication, structural assembly, or machinery repair. It provides a sturdy lifting framework where overhead cranes are unavailable, helping workers manage heavy components securely and efficiently.
Built to perform under intermediate-duty cycles, this gantry crane serves as a go-to solution for open-area lifting—bridging the gap between portability and industrial capacity across construction, logistics, manufacturing, and field maintenance.
